JY chocolate pouring production line
Keywords:
Candy Machinery Series
chocolate
machine
Product Classification:
Details Introduction

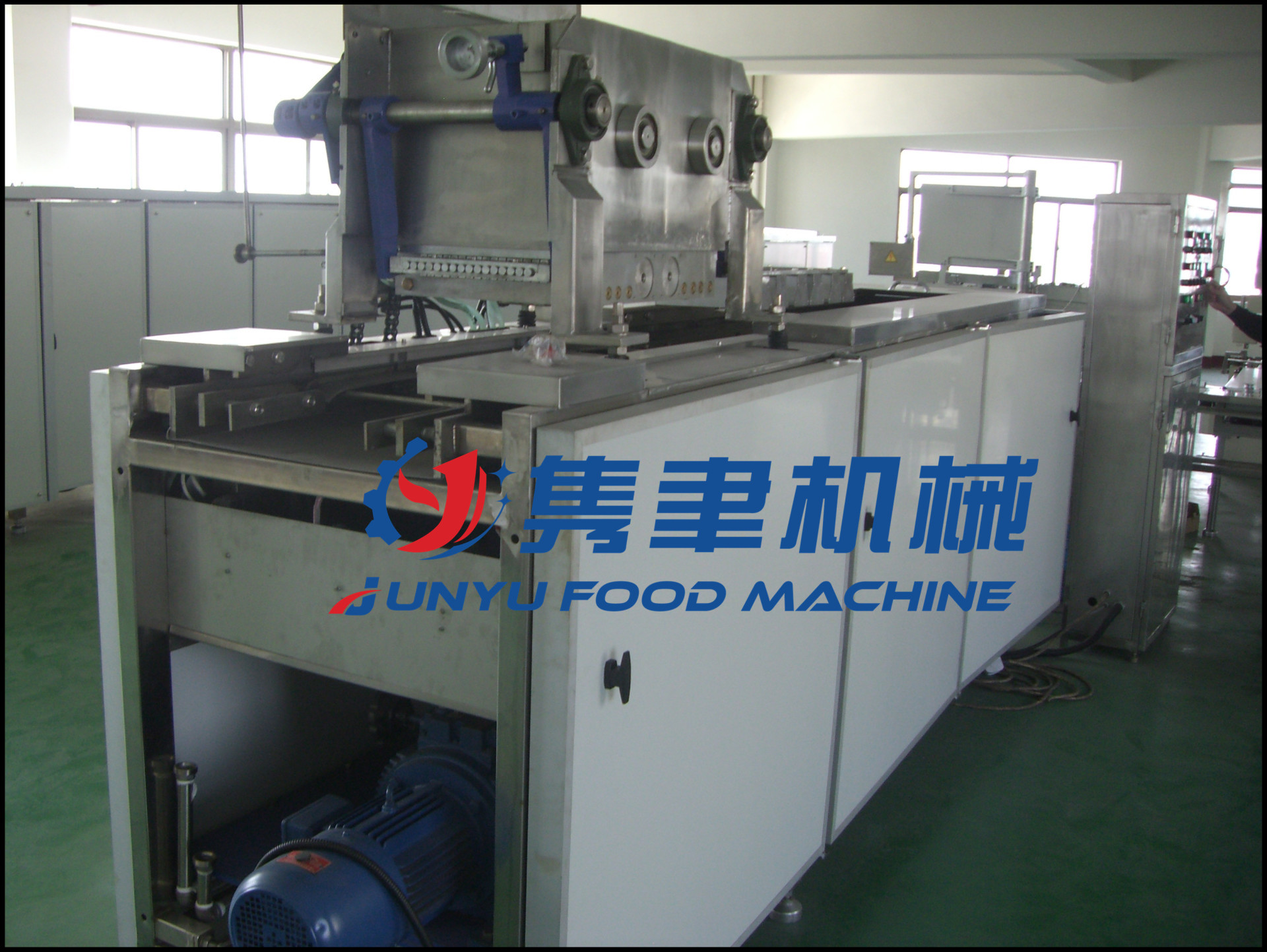

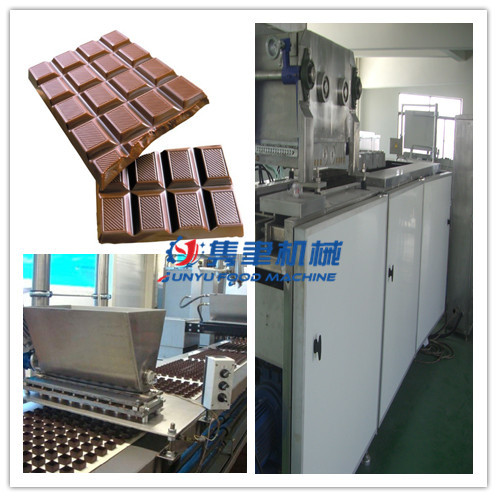

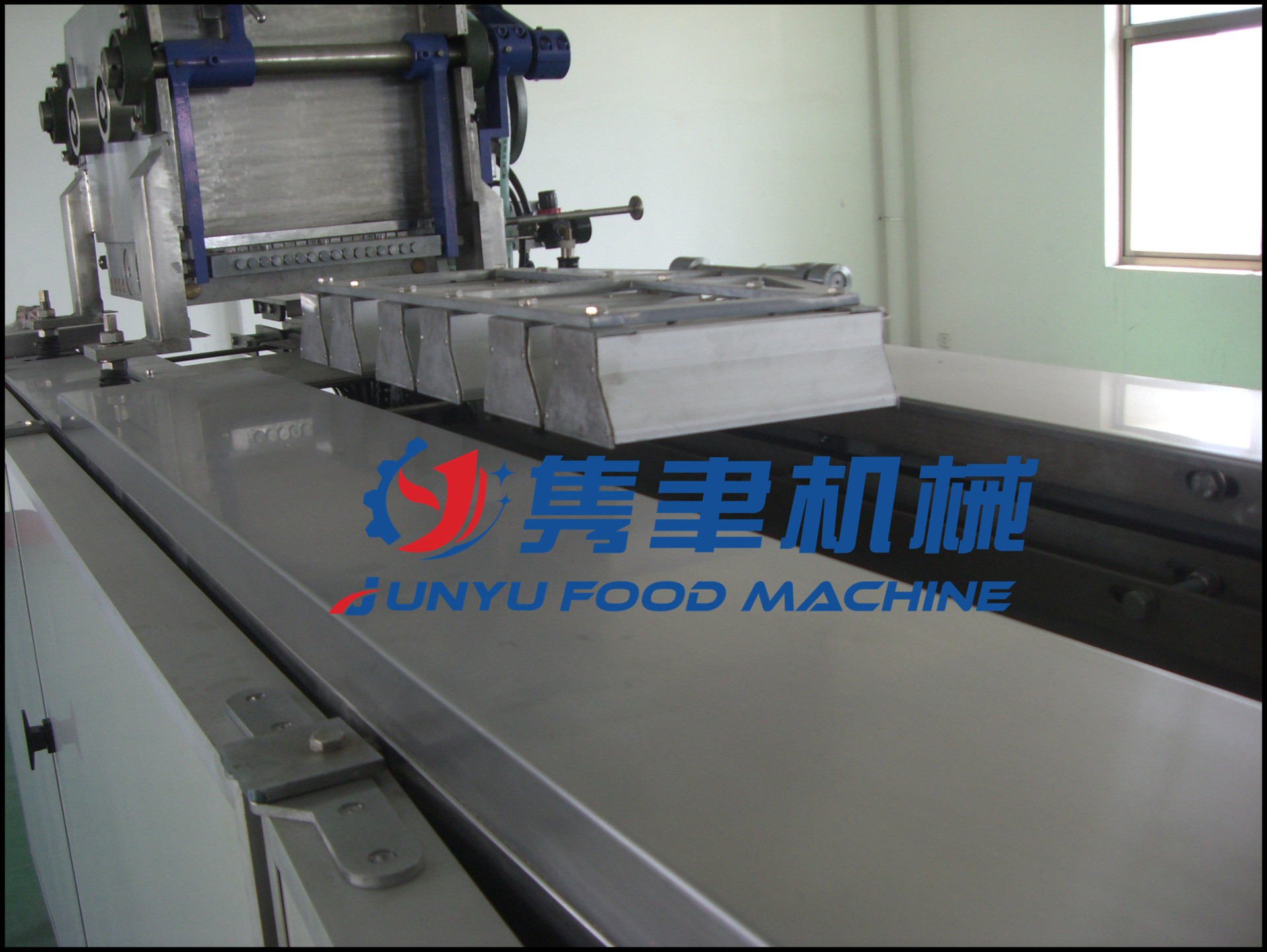

JY chocolate pouring production line
Equipment Introduction:
This machine is a special advanced equipment for chocolate casting molding machine, which integrates machine, electricity and gas control. The whole production process includes full-automatic working procedures such as mold drying, pouring, shaking, cooling, demoulding and conveying. This machine can produce pure chocolate, sandwich, upper and lower, left and right double-color chocolate (double heads can work separately at the same time), and mixed and poured chocolate with granules. The products are smooth, beautiful and accurate in quantity.
Technical parameters:
|
Model |
JY-110 |
JY-111 |
JY-112 |
JY-113 |
|
Production capacity (ton/8h) |
150 |
300 |
450 |
600 |
|
Power of complete machine (including refrigerator) (kw) |
9 |
21 |
23 |
28 |
|
Cooling capacity (kcal/h) |
/ |
21800 |
21800 |
21800 |
|
Dimensions of die plate (mm) |
275 × 175 × 30 |
280 × 200 × 30 |
280 × 200 × 30 |
280 × 200 × 30 |
|
Number of die plates (block) |
270 |
270 |
380 |
420 |
|
Exterior dimension (mm) |
3600 × 725 × 1560 |
17010 × 1010 × 1330 |
17060 × 1005 × 1870 |
18600 × 1200 × 2400 |
