Lollipop casting production line

JYL-150 ~ 600 lollipop production line lollipop pouring machine lollipop processing machinery production lollipop machine Shanghai candy machine

Keywords:

lollipop

production

Product Classification:

Candy Machinery Series

Telephone:

17317215245

Message

Details Introduction

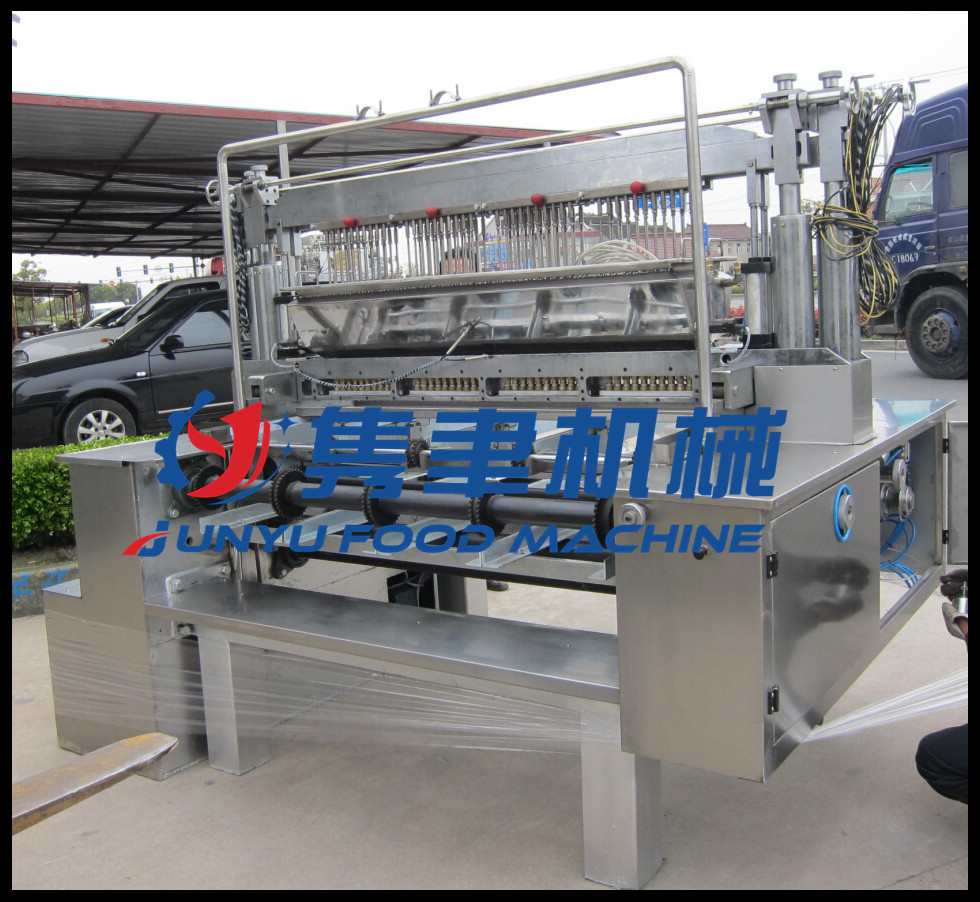

Lollipop casting production line

Equipment Introduction:

JYL series automatic PLC control pinhole film continuous boiling candy lollipop casting production line is currently the domestic advanced casting (ball, flat, three-dimensional) lollipop production equipment. The machine integrates machine, electricity and gas control, has a reasonable and compact structure, and has a high degree of automation. The production efficiency is high, and it can produce monochrome, double-flavor and double-color spray flowers, double-flavor and double-layer, three-flavor and three-color spray flowers, crystal sugar, sandwich sugar, text sugar, xylitol sugar-free lollipop and thinking odd lollipop, etc. The machine is equipped with automatic rod insertion system, can realize the whole line automatic operation, after many improvements, the operation is more simple and convenient. In addition, the production line also has the same characteristics as the hard candy casting production line. The mold and some devices are replaced, and the lollipop casting production line and the hard candy casting production line can be interchanged.

Technical parameters:

Model	JYL-150	JYL-300	JYL-450	JYL-600
Standard output (kg/h)	150	300	450	600
Maximum sugar weight	26	26	26	26
Lollipop diameter	Flat：18~28mm，Ball：max.25mm
Size of bar (mm)	60~100	60~100	60~100	60~100
Pouring speed (n/min)	25~30	25~30	25~30	25~30
Steam demand	250kg/h 0.5~0.8MPa	300kg/h 0.5~0.8MPa	400kg/h 0.5~0.8MPa	500kg/h 0.5~0.8MPa
Compressed air demand	0.2m³/min 0.4~0.6MPa	0.2m³/min 0.4~0.6MPa	0.25m³/min 0.4~0.6MPa	0.25m³/min 0.4~0.6MPa
Working environment requirements	Temperature: 20~25 ℃ Humidity: 55%	Temperature: 20~25 ℃ Humidity: 55%	Temperature: 20~25 ℃ Humidity: 55%	Temperature: 20~25 ℃ Humidity: 55%
Overall power	27KW/380V	28KW/380V	41KW/380V	64KW/380V
Length of whole line (M)	17	17	18	18
Overall weight (kg)	3500	4000	4500	5000
